Radiation Shield Panels, Doors & Gates

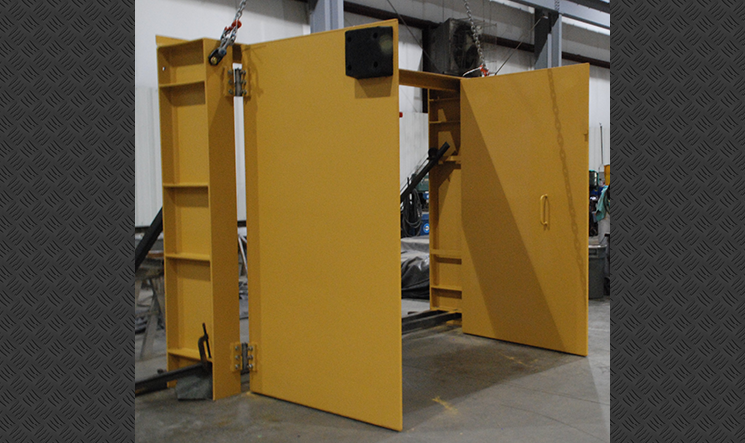

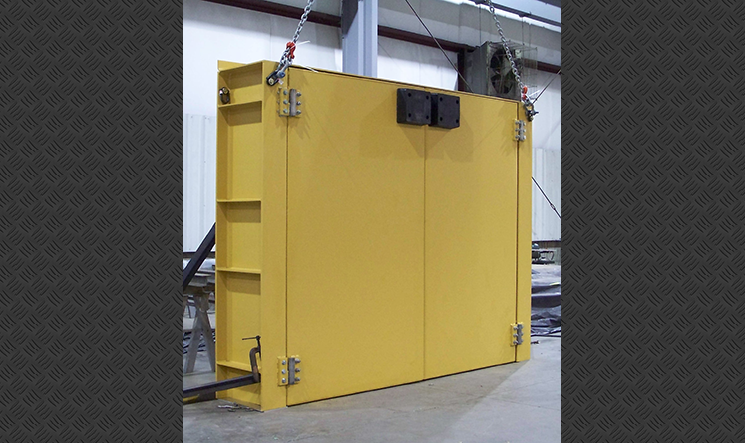

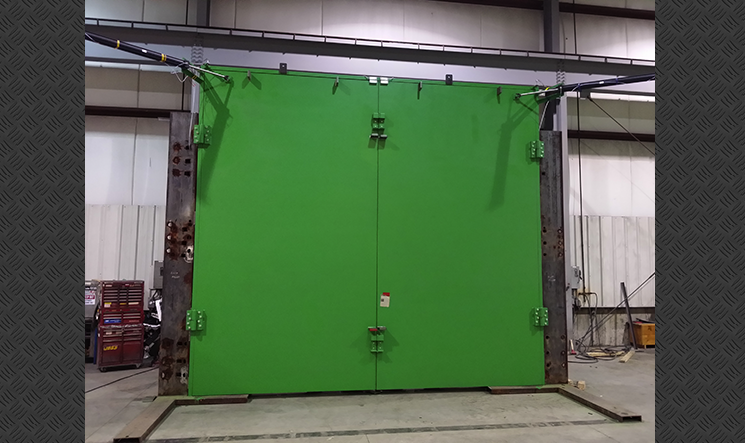

radiation-shield-door-1 radiation-shield-door-2 radiation-shield-door-3
<
>

Ellis & Watts designs, qualifies, and manufactures panels, doors, and gates to shield personnel and equipment from radiation exposure.

Ellis & Watts Radiation Shield Panels, Doors, and Gates are engineered - CLICK TO SEE FULL LIST

  • with a hollow-core construction and neutron absorbing materials, in varying depths depending upon the application
  • in varying sizes and shapes
  • for rapid open and/or close
  • can be designed with an integral frame for cast-in-place applications or designed to mount to an existing frame
  • with proximity sensors and latch interlocks
  • with proven analog, relay-based controls to address qualification, cyber security, or EMI/RFI concerns or with the latest digital control systems

Other capabilities include - CLICK TO SEE FULL LIST

  • engineered for operation in extreme ambient temperatures
  • engineered to meet stringent air leakage requirements
  • Seismically qualified per IEEE 344
  • Environmentally qualified per IEEE 323

Power options include - CLICK TO SEE FULL LIST

  • Manual operation and override
  • Electric actuators
  • Pneumatic actuators

The complete system can be provided with - CLICK TO SEE FULL LIST

  • ASME AG-1 compliance
  • ASME NQA-1 compliance
  • 10CFR50 Appendix B compliance
